离线安装Harbor

安装配置Harbor

• 下载离线安装包

https://github.com/goharbor/harbor/releases/download/v2.5.3/harbor-offline-installer-v2.5.3.tgz

• 解压到opt目录下

tar -xvf harbor-offline-installer-v2.5.3.tgz

• 拷贝配置文件

修改Hostname,http.port,注释掉https

# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: 10.0.0.3    # 应该填写外网地址

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 8089

# https related config
#https:
#  # https port for harbor, default is 443
#  port: 443
#  # The path of cert and key files for nginx
#  certificate: /your/certificate/path
#  private_key: /your/private/key/path

# Uncomment external_url if you want to enable external proxy
# And when it enabled the hostname will no longer used
# external_url: https://reg.mydomain.com:8433

# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: xxxxxxx

• 执行安装脚本

安装Harbor前要先安装docker

# 安装环境
./prepare

#安装Harbor
./install.sh

基本使用方法

• docker配置信任仓库

# /etc/docker/daemon.json
"insecure-registries": ["10.0.0.3:8777"]

# 重启docker

systemctl daemon-reload
systemctl restart docker

• 重启Harbor

docker-compose down

docker-compose up -d

• docker登录Harbor

docker login 10.0.0.3:8777

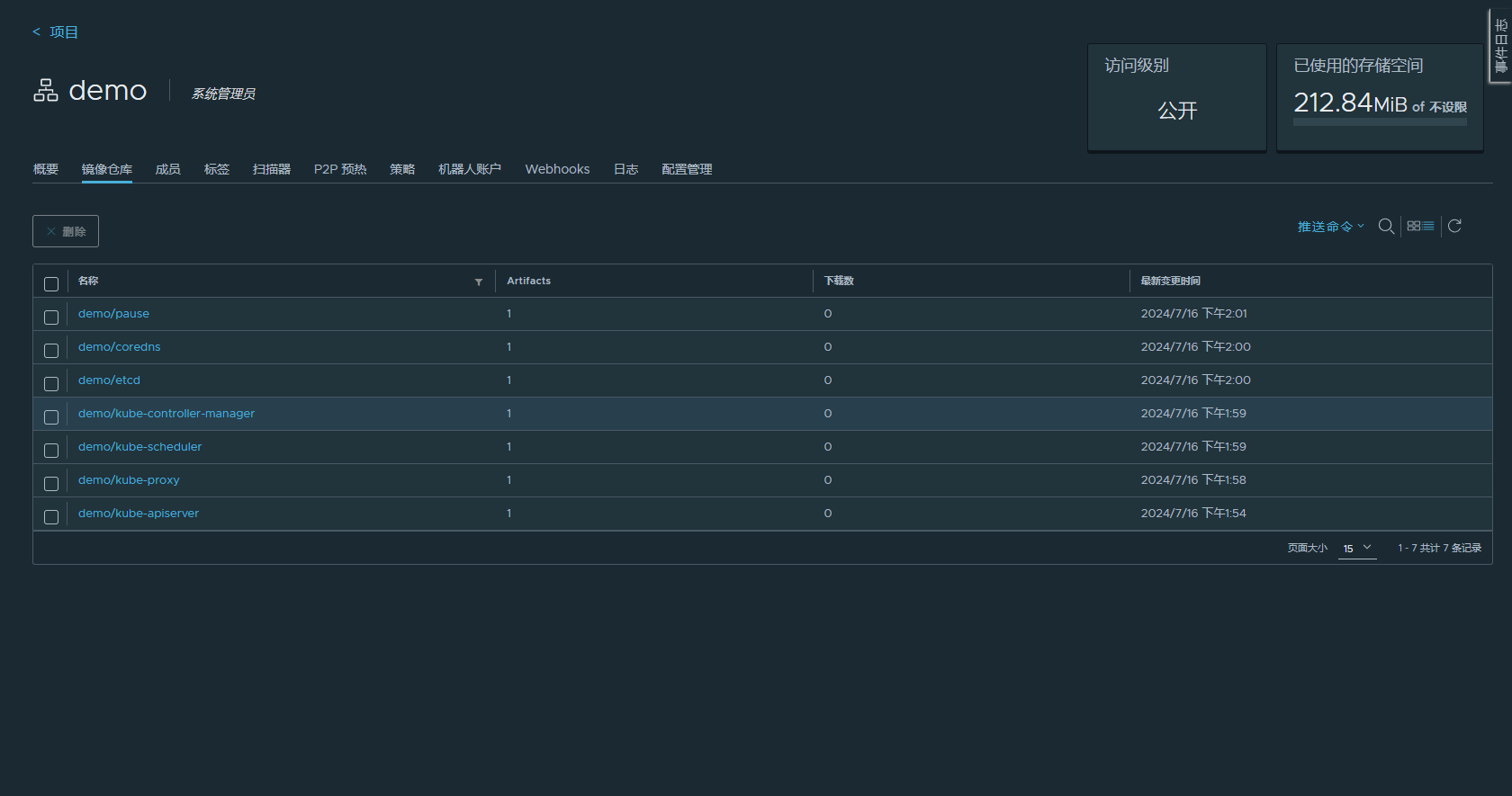

• docker推送命令

# 在项目中标记镜像
docker tag SOURCE_IMAGE[:TAG] 10.0.0.3:8777/demo/REPOSITORY[:TAG]
# 推送镜像到当前项目
docker push 10.0.0.3:8777/demo/REPOSITORY[:TAG]

# 在项目中标记镜像
docker tag k8s.gcr.io/kube-scheduler:v1.22.17 10.0.0.3:8777/demo/kube-scheduler:v1.22.17
# 推送镜像到当前项目
docker push 10.0.0.3:8777/demo/kube-apiserver:v1.22.17
